Trailers for Work Machines up to 3500 kg

Torbarina trailers with a gross vehicle weight of up to 3500 kg (trailer + machine) are designed and built to measure, tailored specifically to the work machine or generator being transported – according to its exact dimensions, weight, and technical requirements.

Each trailer is fully customized – from the chassis to the ramp angle – to ensure safe, easy, and efficient loading, even for low-clearance machines or those with small wheels.

Equipped with an overrun braking system and manufactured in-house, these trailers guarantee maximum robustness, safety, and reliability – all in accordance with the highest European quality standards.

Get a Quote

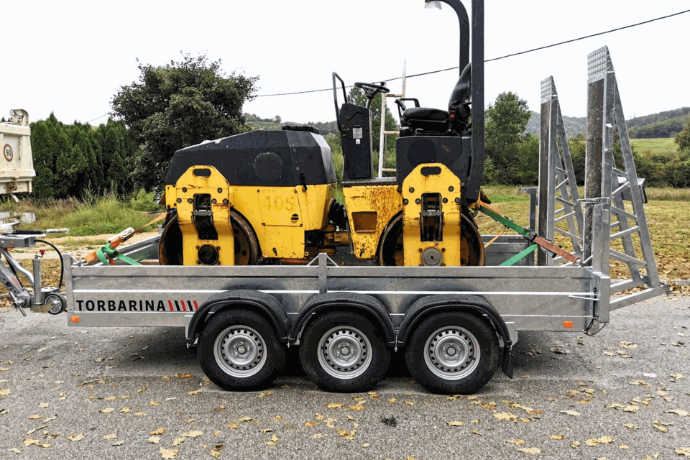

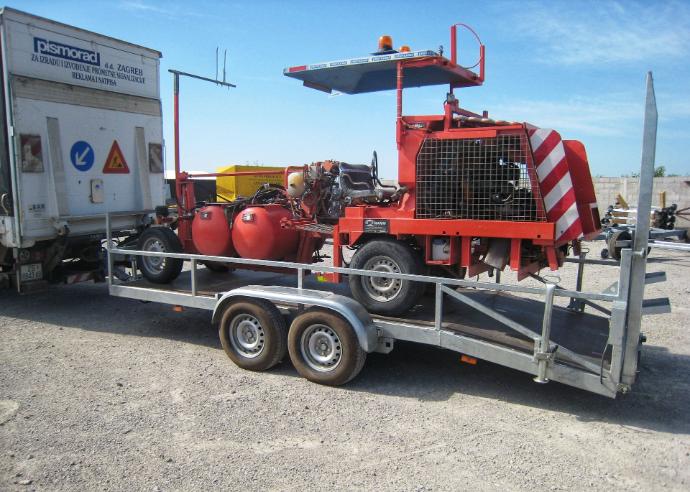

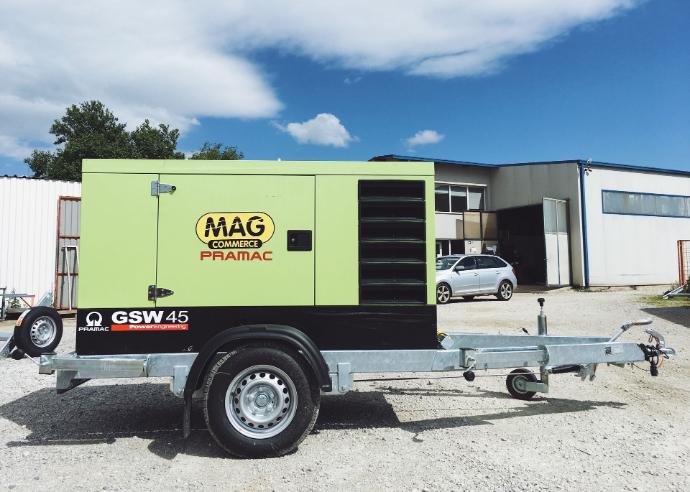

Trailers for transporting generators of all sizes, excavators, work machines, and special machinery...

Loading Area Length	Standard: 2500 – 5000 mm; longer versions available on request
Loading Area Width	1200 – 1800 mm (with side-mounted wheels) 1800 – 2550 mm (with under-bed wheels)
Total Maximum Trailer Width	2550 mm
Drawbar	Standard fixed drawbar: 400 mm (±50 mm) For greater heights: custom welded fixed drawbar with integrated overrun system (delta or square coupling) Adjustable drawbar with Z-joint couplings and integrated overrun brake system
Axles and Brake System	Single, tandem, or triple axle configurations adapted to weight and dimensions Overrun brake system Models with gross weight up to 750 kg also available without brakes
Chassis	Robust steel chassis (S235 quality), continuously welded and protected with hot-dip galvanizing or paint coating Versions with aluminum components available
Flooring	Water-resistant anti-slip plywood, ribbed aluminum, checker plate, or combinations based on customer requirements
Lighting	12 V or 24 V, classic or LED options

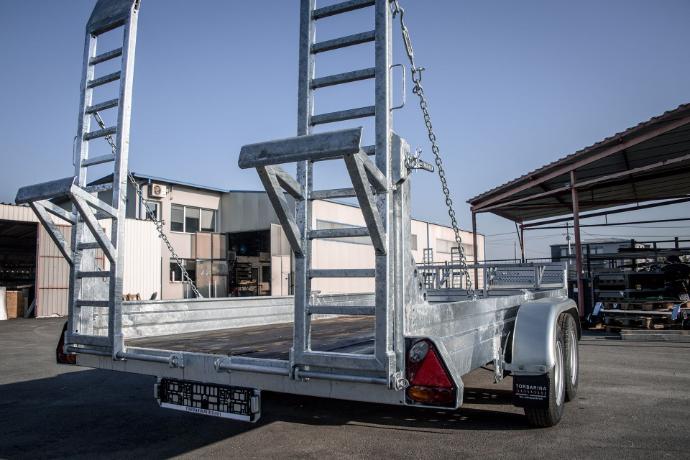

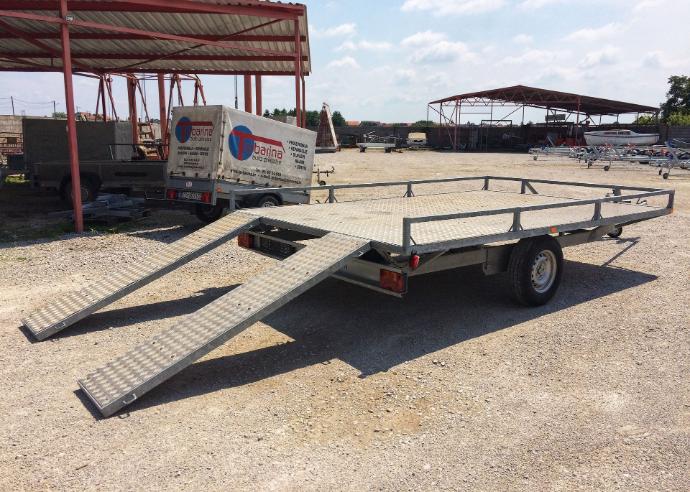

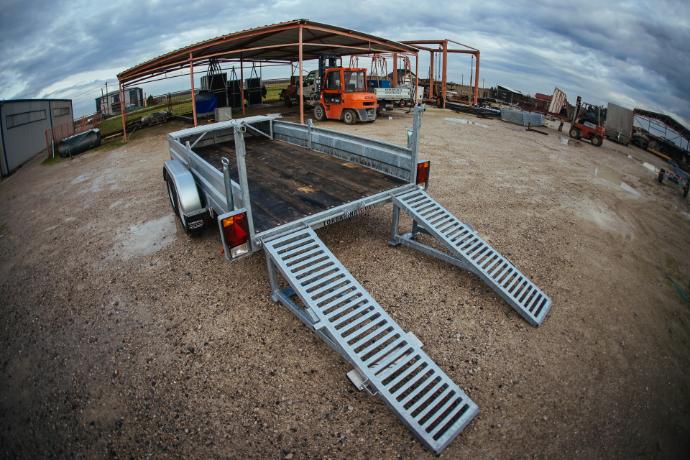

Loading Ramps	In-house production of steel (galvanized or painted) and aluminum ramps in various dimensions and chassis mount types Wide selection of premium aluminum ramps from the catalog range of leading European manufacturers also available
Coupling Options	Standard couplings/hitches or towing eyes according to DIN 40 standard Special designs available upon request
Additional Equipment	Stabilizers, security locking systems, straps and chains with clamps, toolboxes (plastic, steel, aluminum), wheel chocks with holders, jockey wheel, extra lashing rings, LED lighting, bows and tarpaulin

Request a Custom Quote.

Send Request

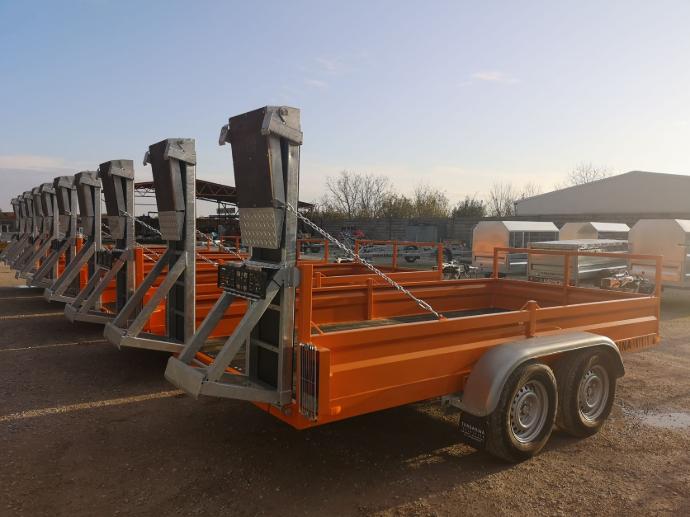

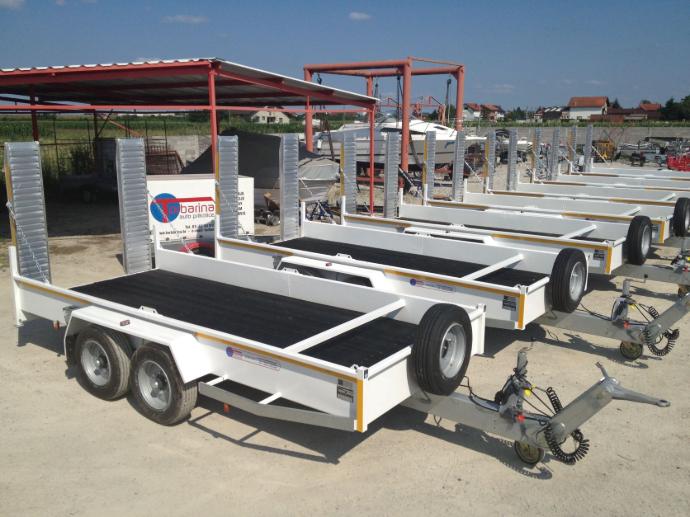

Air-brake trailers up to 18 tons

Torbarina air-brake trailers are manufactured exclusively to order – based on the exact dimensions, weight, and technical specifications of the machine you are transporting. Each trailer is individually engineered to meet the user's specific requirements – with no compromises.

The structure of every trailer is adapted to extreme working conditions, with a focus on maximum payload capacity, driving stability, and ease of handling during loading and unloading – whether you’re transporting construction machinery, specialized equipment, or other demanding loads.

Production is carried out in our own facility, under strict quality control and in accordance with the highest European standards and TÜV certifications.

Our trailers combine top-level engineering, reliability, and long-term durability – for users who accept nothing less than perfection.

Get a Quote

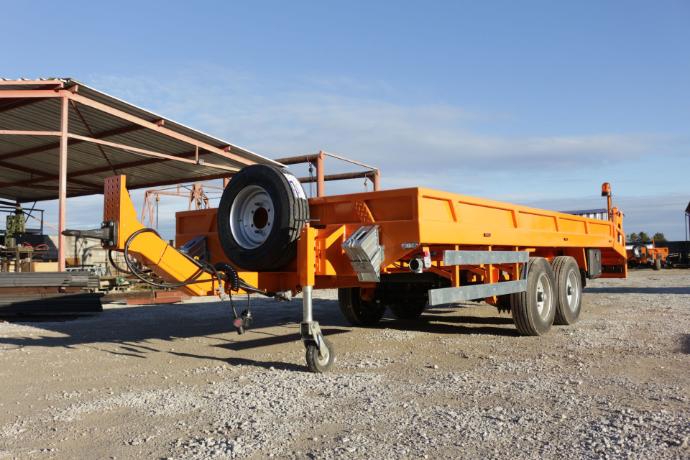

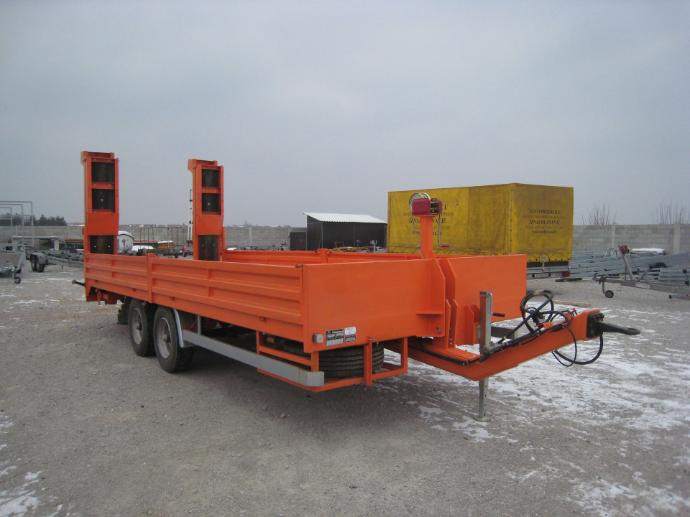

For transporting various heavy-duty machinery

Load Capacity	Single-Axle Models: Total weight 5.5 t or 9 t Tandem-Axle Models: Total weight up to 18 t: 6600 kg (2x 3300 kg), 12 t (2x 5500 kg), 18 t (2x 9000 kg)
Axles	Top-quality European axles, certified, with the possibility of single or tandem axle configuration – AL-KO, BPW, SAF, GIGANT; industrial-grade bearings and sealed units with enhanced resistance to dust, water, and dirt
Braking System	Air pneumatic braking system with integrated ABS, mechanical parking brake, and additional safety features
Chassis	Extremely robust steel frame, fully welded, with additional reinforcements for torsional load resistance Hot-dip galvanized or painted in RAL color of customer’s choice
Flooring	Versions with ribbed steel sheet painted in RAL, wooden inserts, or full wooden flooring for optimal machine grip, as well as combinations of the above
Lighting	24 V LED system, compliant with EU and TÜV standards Optional rotating beacon with cabin control
Drawbar and Couplings	Fixed or adjustable drawbar with adjustable towing eye height (DIN 40) Front plate with holes for precise positioning Standard coupling: towing eye

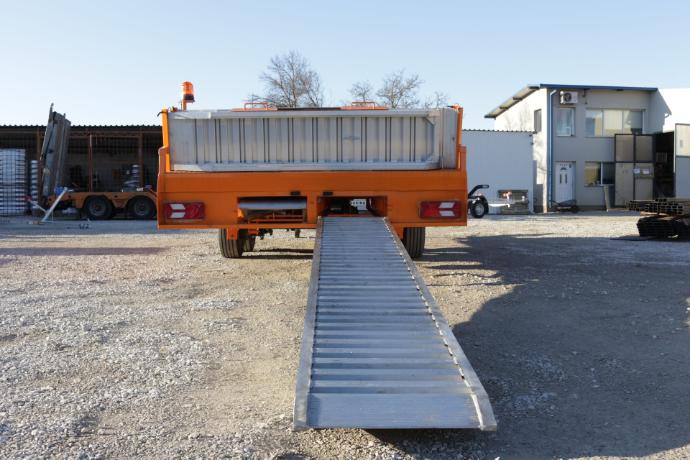

Loading Ramps	Steel, aluminum, or custom-made versions Standard movable steel ramps (hot-dip galvanized/painted) produced in-house, allowing customization in various lengths, widths, and chassis mounts Additionally, a wide range of lightweight catalog aluminum ramps from renowned European manufacturers is offered Ramps can be stored under the trailer, mounted as a rear tailgate (length up to 2550 mm), or vertically placed on the loading area – all versions are movable and adjustable At the customer’s request, a hydraulic ramp lifting and lowering system can be integrated
Additional Equipment	Stabilizers, locking safety system, rotating signal light, toolboxes (plastic, steel, aluminum), additional cargo securing rings, metal wheel chocks with holders, straps and chains with clamps, heavy-duty jockey wheel, pneumatic axle lifting, spring brake system, EBS system (on request), side underrun protection
